• E-type connector
• Wrench type
• Precise technology, Steady, no vibration while revolving, offering a steady operation.
• Suitable for any E-type handpiece accords with ISO standard
• 135°C Autoclavable, suitable for both steam and chemical autoclave

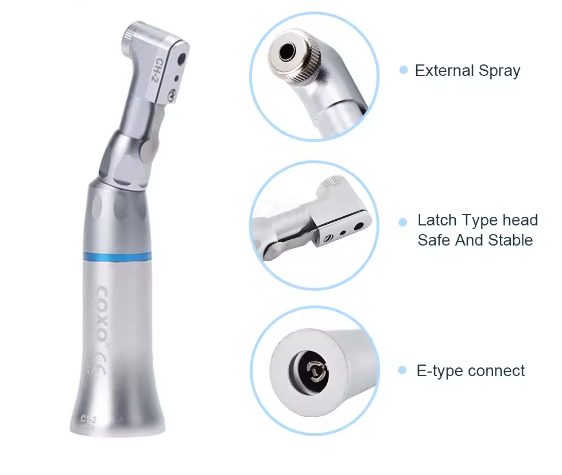

Contra angle handpiece :

• Low Speed 22,000-27,000 rpm.

• The shank of the instrument mounted therein is 2.35 mm.
• Fastening of the instruments with a turning latch.
• Autoclavable 135°C
• For any lab or E-type motors

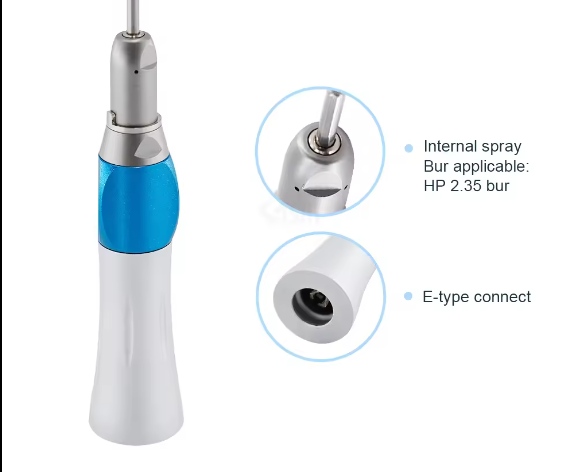

Straight Nosecone:

• Working pressure: 0.3MPa.
• 0.25MPa (Measure meter is installed at the end of air motor to measure the air pressure).
• Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise).
•  Noise: ≤68dB
• Air consumption: about 56L/min
• Ratio: 1:1
• Max speed of contra angle: 25000rpm/min.

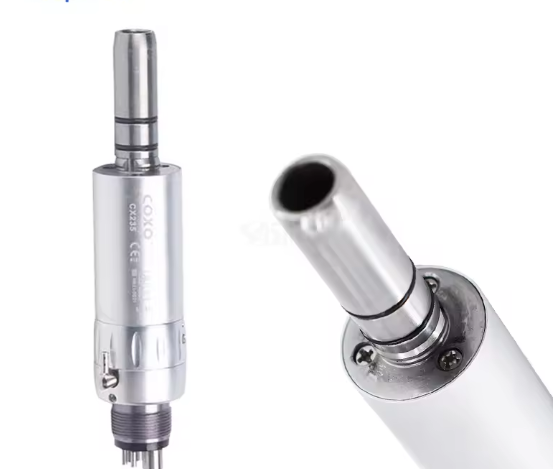

Air Mortor:

• Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
• 1:1 Direct Drive
• 2/4 Holes
• Max speed 20,000 min-1

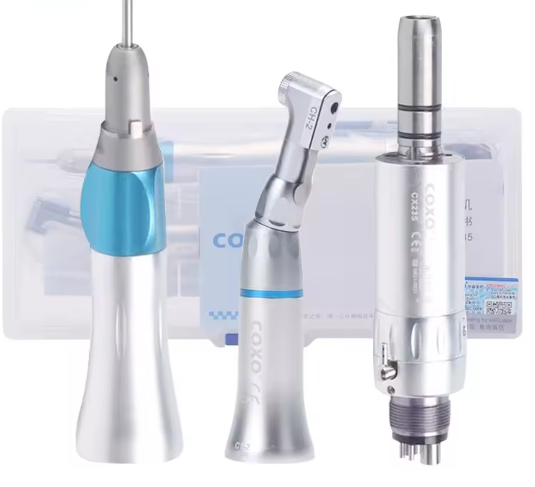

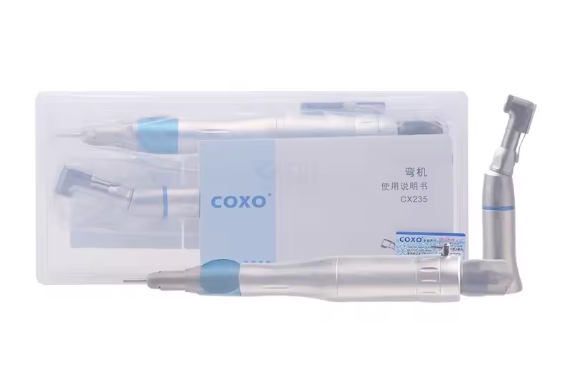

What's in the box?

• 1x E-Type Air Motor (4-Hole or 2-Hole)

• 1x Contra-Angle Handpiece (Latch or Push Button)

• 1x Straight Handpiece

• 1x External Water Spray Nozzle Kit

Technical Details:
Rotation Speed: Approx. 20,000–30,000 rpm.

Air Pressure: 0.3MPa.

Noise Level: ≤70dB.
